　　随着5G、人工智能、云计算、物联网及虚拟现实等新一代技术的普及，全球数据传输需求呈现井喷式增长。与此同时，传统单芯单模光纤已逼近物理传输极限，不仅难以承载高密度信号传输任务，更成为制约数字经济高速发展的关键瓶颈。多核光纤作为革命性的新型传输介质，通过在单一包层内集成多个独立纤芯，实现“同一光缆、多路并行传输”——在不增加铺设空间的前提下，将系统传输容量提升数倍至数十倍，完美破解传统光纤的容量困局。然而，行业推广中仍面临核心技术障碍：如何高效实现多纤芯信号的复用/解复用，同时保障与现有单模光纤通信系统的无缝兼容。在此背景下，中航光电（002179）推出多核光纤扇入扇出组件，为行业提供一站式传输升级解决方案。

　　 With the explosive adoption of next-generation technologies including5G,AI,cloud computing,IoT and VR,global demand for data transmission has surged.Meanwhile,traditional single-core single-mode fiber has neared its physical transmission limit;its limited capacity not only fails to support high-density signal transmission tasks,but also becomes a key bottleneck hindering the rapid development of the digital economy.As a new transmission medium,multi-core fiber integrates multiple independent cores within a single cladding to achieve"multi-channel parallel transmission over the same optical cable"—it can boost the system transmission capacity by several to dozens of times without increasing cable laying space,perfectly resolving the capacity constraints of traditional fiber.However,the industry-wide adoption still faces a core technical challenge:how to efficiently implement the multiplexing/demultiplexing of multi-core signals while ensuring compatibility with existing single-mode fiber communication systems.Against this backdrop,JONHON has launched the multi-core fiber fan-in/fan-out component,offering a one-stop transmission upgrade solution for the industry.

　　产品简介

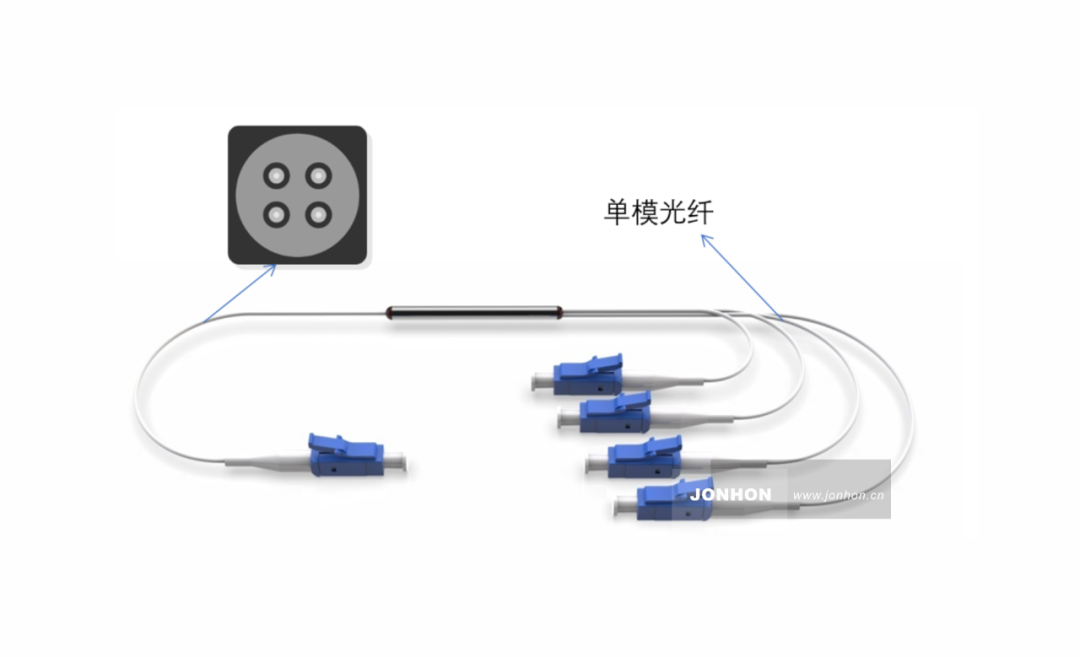

　　中航光电多核光纤扇入扇出组件，是基于自研扇入扇出核心结构打造的光互连组件。其核心功能在于实现“双向高效耦合”：一方面将多路单模光纤的光信号精准汇聚至一根多核光纤，另一方面将多核光纤的多路信号稳定分离至独立单模光纤，从而打通多核光纤与传统单模光纤通信系统的连接通道。

　　 JONHON's multi-core fiber fan-in/fan-out component is an optical interconnect component developed based on its self-developed fan-in/fan-out structure.Its function is to achieve"bidirectional high-efficiency coupling":on one hand,it accurately converges optical signals from multiple single-mode fibers into a single multi-core fiber;on the other hand,it stably separates multi-channel signals from a multi-core fiber into independent single-mode fibers,thereby opening up the connection channel between multi-core fibers and traditional single-mode fiber communication systems.

　　“多核光纤扇入扇出组件”申宝策略

　　产品亮点

　　1.优异光学传输性能：核心光学指标达到行业领先水平，平均插损≤0.5dB、回波损耗≥50dB、光串扰≥45dB，有效降低信号传输衰减与串扰干扰，保障数据高速、精准、稳定传输。

　　2.高兼容特性：产品对接端为成熟标准连接器，通用性与适配性极强，可以广泛应用于数据通讯领域。

　　3.极端环境高可靠性：具备优异的环境适应能力，在高低温交变、机械振动、冲击等复杂工况下均能实现稳定可靠传输，确保设备在多场景下持续正常运行。

　　 Excellent optical transmission performance:Core optical indicators reach an industry-leading level,with average insertion loss≤0.5dB,return loss≥50dB,and optical crosstalk≥45dB.It effectively reduces signal transmission attenuation and crosstalk interference,ensuring high-speed,accurate and stable data transmission.

　　 High compatibility:The mating end of the product is a well-established standard connector,which boasts excellent universality and adaptability and can be widely applied in the data communication field.

　　 High reliability in extreme environments:It boasts excellent environmental adaptability and enables stable and reliable transmission under complex working conditions such as alternating high and low temperatures申宝策略,mechanical vibration and impact,ensuring the continuous normal operation of equipment in multiple scenarios.

　　产品应用

　　. 通信光网络：适配数据中心(IDC)高密度互连、骨干传送网大容量扩容、5G承载网低时延传输，以及区域互联光网络建设，满足海量数据（603138）交互与高速通信需求。

　　. 特种传感应用：适用于地震探测、火灾探测、油气管道监测等传感系统，凭借低串扰、高稳定特性，提升传感信号的采集精度与传输距离。

　　. 海底光通信系统：适配近岸到深海的各类海底光网络，耐受高压、高湿、低温等极端海洋环境，保障跨区域海底数据传输的可靠性与安全性。

　　 Communications Optical Networks:Adapted for high-density interconnection in data centers(IDC),large-capacity expansion of backbone transport networks,low-latency transmission of5G bearer networks,and construction of regional interconnected optical networks,meeting the demands for massive data interaction and high-speed communication.

　　 Special Sensing Applications:Suitable for sensing systems including earthquake detection,fire detection,and oil&gas pipeline monitoring.Leveraging features of low crosstalk and high stability,it enhances the acquisition accuracy and transmission distance of sensing signals.

　　 Submarine Optical Communication Systems:Adapted for various submarine optical networks ranging from coastal to deep-sea areas,it is resistant to extreme marine environments such as high pressure,high humidity and low temperature,ensuring the reliability and security of trans-regional submarine data transmission.

　　未来，中航光电将继续锚定全球光通信产业高密度、高速率、高可靠的发展航向，聚焦超大规模数据中心、深海通信网络等场景的差异化需求，突破多纤芯耦合效率提升、极端环境适配升级等核心技术难点，助力全球光通信网络向超大容量、超低损耗、全域兼容的方向进阶，为数字经济全场景高速互连筑牢底层传输根基。

　　 In the future,JONHON will keep pace with the global optical communication industry’s trends toward high-density,high-rate,and high-reliability.Focusing on the differentiated needs in scenarios like ultra-large-scale data centers and deep-sea communication networks,we will break through key technical bottlenecks(e.g.,improving multi-core fiber coupling efficiency and enhancing extreme environment adaptability),drive the evolution of global optical communication networks toward ultra-large capacity,ultra-low loss,and full-domain compatibility,and solidify the underlying transmission foundation for full-scenario high-speed interconnection in the digital economy.
